Kirloskar Cast Iron ISI Sluice Valve PN1.6 Cat No:`. Flanged FF IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, HandWheel Operation - Valvesekart
Kirloskar 65 mm / 2.1/2" Cast Iron ISI Sluice Valve PN1.6 , C.I. DF, Flanged FF ,IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, Hand Wheel Operation
Kirloskar 65 mm / 2.1/2" Cast Iron ISI Sluice Valve PN1.6 , C.I. DF, Flanged FF ,IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, Hand Wheel Operation
Kirloskar Cast Iron ISI Sluice Valve PN1.6 Cat No:`. Flanged FF IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, HandWheel Operation - Valvesekart

Kirloskar 65 mm / 2.1/2" Cast Iron ISI Sluice Valve PN1.6 , C.I. DF, Flanged FF ,IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, Hand Wheel Operation

Rs. 14,835.00
Rs. 9,346.05
Shipping calculated at checkout.

Click for 65mm Kirloskar Check Valve Price

CLICK FOR OTHER TYPE OF VALVES OF KIRLOSKAR BROTHERS

Kirloskar Make 65mm Sluice Valve,Type:IS Non Rising,PN1.6 Flanged FF IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, HandWheel Operation

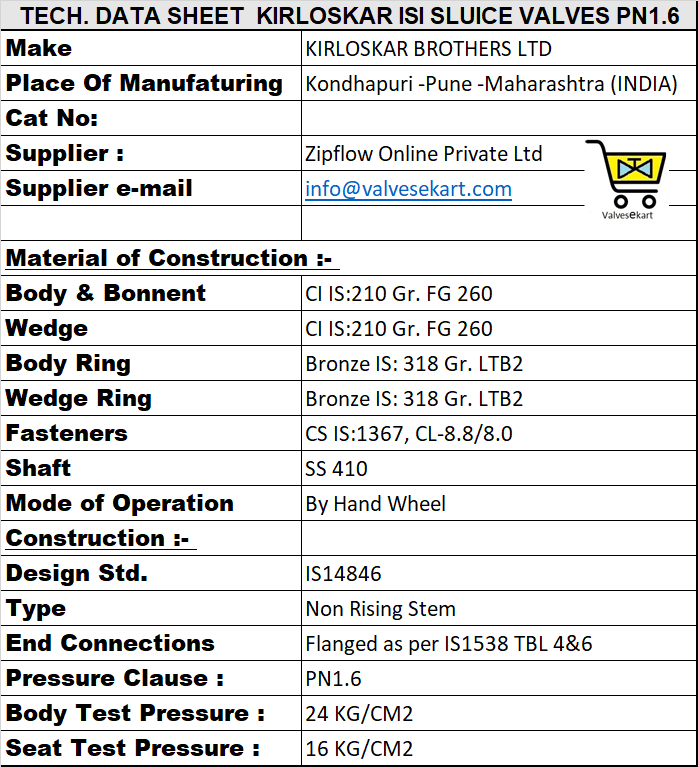

Technical Data Sheet

Design STD IS 14846 MAKE Kirloskar Brothers Ltd
Sub Type IS Non Rising Stem Class PN1.6
Body /Bonet  MOC CI IS 210 GR FG 260 Wedge CI IS 210 GR FG 260
Body Seat IS : 318 Gr. LTB - 2 Wedge Ring IS : 318 Gr. LTB - 2
End Connection Flanged FF Flg Drilling IS 1538 TBL 4&6 FF
Body /Seat Test Pr. 24/16 kg/cm2 Operation By Handwheel

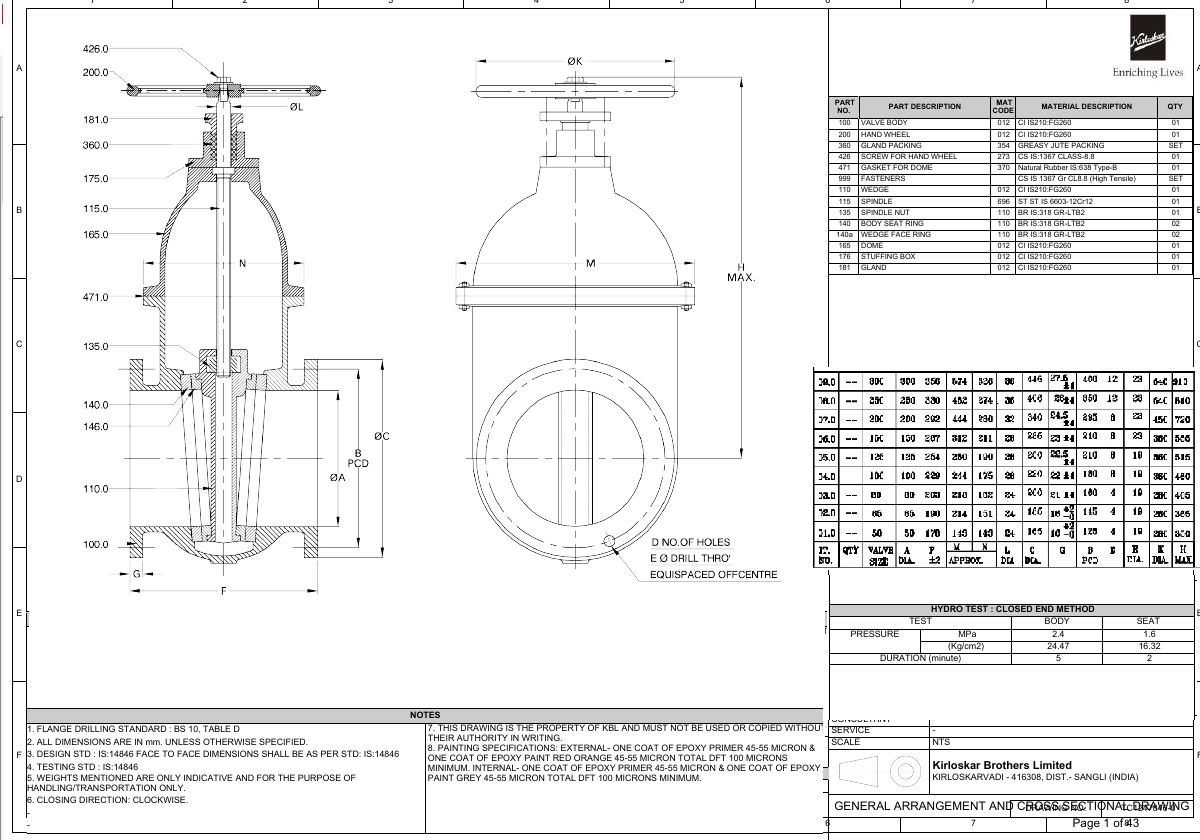

Click for Dimensions and Weight
  Click to download Manufacturer Catalogue
  Click to visit Manufacturer website to know more.

    Kirloskar ISI Sluice Valve Price PN1.6 Cat No:`. Flanged FF IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, HandWheel Operation
    Kirloskar ISI Sluice Valve Price PN1.6 Cat No:`. Flanged FF IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, HandWheel Operation
    Kirloskar ISI Sluice Valve Price PN1.6 Cat No:`. Flanged FF IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, HandWheel Operation
    Kirloskar ISI Sluice Valve Price PN1.6 Cat No:`. Flanged FF IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, HandWheel Operation
