KBL is one of the pioneers in manufacturing various types of valves in India. It is the first Pump & Valve manufacturer in India to be accredited with ISO-9001 Quality Management System. In addition, KBL is also accredited with ISO 14001 Environmental Management System, OSHAS 18001, Health and Safety Management system, ISO 50001 Energy management system certification by BUREAU VERITAS.
The Valve Sector at KBL carries out research for providing effective fluid handling solutions, achieving technological breakthrough using advanced computational and experimental techniques and developing reliable products. This ensures that the KBL Valve design is rigid & sturdy with lowest life cycle cost and low maintenance. Over the last six decades, the valve performance is well known and established.
KBL valves are suitable for various applications like water, waste water, raw water
, steam, oil & gas, processed liquids and slurries. Our valve size range is from 25mm to 5000mm in various design standards and material constructions as per customer need/specifications.
Kirloskar Industrial 3phase Monoblock Pump KDI range available up to 11 KW
|
Kirloskar Sluice Valves, Kirloskar Non Rising Stem Valves , Kirloskar Rising Stem Sluice valves , Kirloskar Check Valves ,Kirloskar Reflux Valves , Kirloskar Air Valves ,Kirloskar Kinitic Air Valves, Kirloskar Temper Proof Valves, Kirloskar butterfly valves , Kirloskar Flanged Butterfly Valves. Kirloskar Valve Price, Kirloskar Butterfly Valves Price, Kirloskar Gate Valves Price, Kirloskar Check Valves Price, Kirloskar Globe Valves Price, Kirloskar Forged Gate/ Globe/ Check Valve Price
Kirloskar Butterfly Valves
CI / CI - PN10 CI / CI Geared PN10 CI / SS Disc PN10 CI / SS Geared PN10
.
.
CI / DI - PN16 CI / DI Geared PN16 CI / SS Disc PN16 CI / SS Geared PN16
. .
CI / DI - PN 20 CI / DI Geared PN 20 CI / SS Disc PN 20 CI / SS Geared PN 20
. .
Kirloskar CS Gate Valve
CS Body FLG 150# CS Body 150# Geared CS/ Body Flange 300# CS Body Flg 300#
..
..
Kirloskar
Valve Pressure-seal Suppliers in India,
Kirloskar
Valve Cryogenic, Forged Steel
Kirloskar
Valve Dealers, Small-bore Forged Steel Valves,
Kirloskar
Class 150 Butterfly Valve Exporters,
Kirloskar
Globe Control Valve Suppliers in Uae,
Kirloskar
Butterfly Valves Chennai,
Kirloskar
Process Ball Valves Dealers in Pune,
Kirloskar

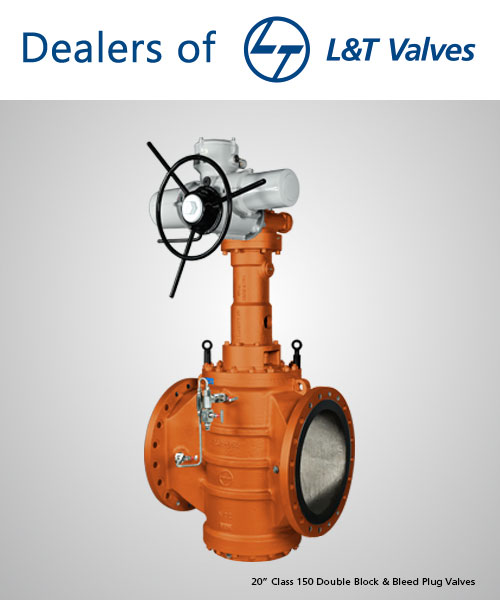

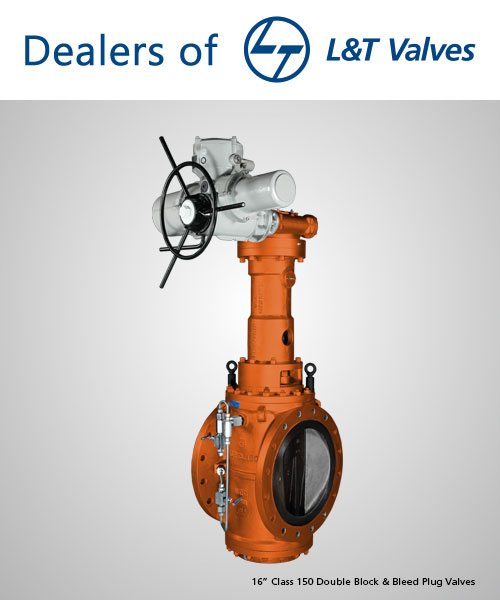

Double Block & Bleed Plug Valve
Gate, Globe & Check Valves
Kirloskar
Valve : Bolted Bonnet
Kirloskar
Valve manufactures a wide variety of Gate, Globe & Check Valves in bolted-bonnet design.The valves are approved by the global majors in oil & gas and power and have a reputation for reliable performance in critical services, across the globe.Valves in bolted bonnet construction are available in pressure classes from 150 to 2500, in a variety of materials and end-connections.
Kirloskar
Valve : Gate Valves Dealers / Distributors
- API 600/ISO 10434
- 2" to 72"
- ASME class 150 to 2500
Salient Features:
- Body and bonnet - Cast with uniform sections, precision machined.
- Body: Straight through port without recesses except in the seat area - Minimum resistance to flow, turbulence and erosion.
- Flex wedge: Guide slots in the wedge engage with integral guide ribs in the body, Stem-to-wedge contact close to wedge centre - Better sealing, smoother operation.
- Seal-welded seat ring - Eliminates leakage path between seat ring and body, does not loosen up due to temperature fluctuations or vibration.
- Stem - One-piece construction with forged T-head - Long service life, smoother operation.
Kirloskar
Valve : Globe Valves Dealers / Distributors
- BS 1873
- 2" to 24"
- ASME 150 to 2500
Salient Features:
- Body and Bonnet - Cast with uniform sections, precision machined.
- In-situ hard-faced body seat - Eliminates leakage path between seat ring and body.
- Guided plug-type disc, Free-floating stem-disc connection - Uniform seating.
Kirloskar Valve : Check Valves Dealers / Distributors
- BS 1868
- 2" to 36"
- ASME 150 to 2500
Salient Features:
- Body and Bonnet - Cast with uniform sections, precision machined.
- Body: Permits full swing of disc on downstream side - Lower flow resistance and disc erosion.
- Disc: Internally-hinged - No opening on the body, higher integrity.
- Disc secured to hinge using lock nut and pin.
- Disc free to rotate to avoid localized wear.
Kirloskar Valve : Pressure-seal Dealers / Distributors
Kirloskarnufactures a wide variety of Gate, Globe & Check Valves in pressure-seal design.The valves are approved by the global majors in power and oil & gas and have a reputation for reliable performance in critical services, across the globe.Pressure seal range is available in ASME classes from 600 to 4100.The valves conform to ANSI B16.34 and are offered with fully hard-faced seats in carbon steel, stainless steel and alloy steel.
Kirloskar Valve : Gate Valves Dealers / Distributors
- ANSI B16.34
- 2" to 36"
- ASME class 600 to 4100
Salient Features:
- Pressure seal body-bonnet joint - Line pressure is used to create a tight body-bonnet seal. Higher the pressure, tighter the seal.
- Parallel-slide gate with disc-springs - Better sealing, lower operating torque, minimises possibility of disc jamming.
- Fully hard-faced trim - Disc, seat-rings and back-seat hard-faced for longer service life.
- Welded seat ring - Eliminates leakage path between seat ring and body, does not loosen up due to temperature fluctuations or vibration.
- Valves available in intermediate pressure classes (#3100, 3500 & 4100) to meet specific customer requirements.
- Option - Valves are offered with pillar yoke arrangement that provides easy access to gland packing.

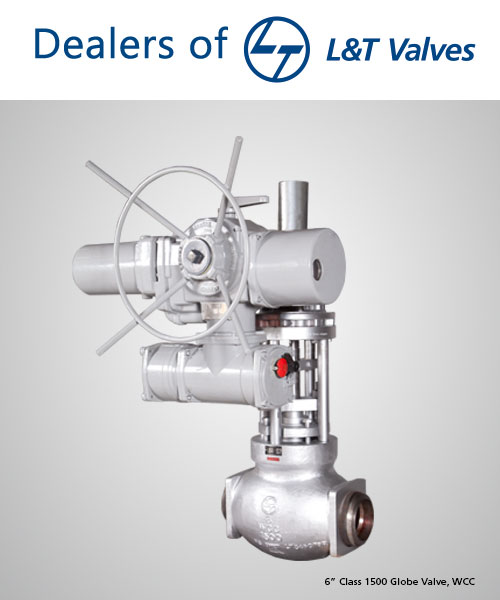

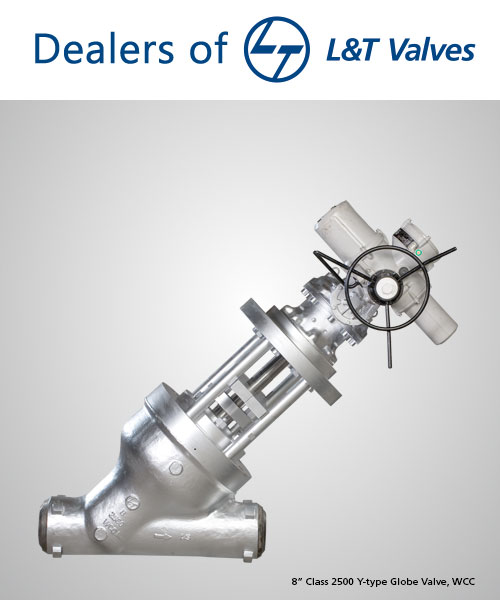

Kirloskar Valve : Globe Valves Dealers / Distributors
- ANSI B16.34
- 2" to 18"
- ASME class 600 to 4100
Salient Features:
- Y-type Configuration - Straight flow and lower pressure drop compared to conventional globe valves.
- Pressure seal body-bonnet joint - Line pressure is used to create a tight body-bonnet seal. Higher the pressure, tighter the seal.
- Integral body seat.
- Fully hard-faced trim - Disc, seat and back-seat hard-faced for longer service life.
- Guided disc.
- Impactor handwheels for tighter sealing.
- Valves available in intermediate pressure classes (#3100, 3500 & 4100) to meet specific customer requirements.
- Option - Valves are offered with pillar yoke arrangement that provides easy access to gland packing.
Kirloskar Valve : Check Valves Dealers / Distributors
- ANSI B16.34
- 2" to 28"
- ASME class 600 to 4100
Salient Features:
- Pressure seal body-cover joint - Line pressure is used to create a tight body-bonnet seal. Higher the pressure, tighter the seal.
- Fully hard-faced trim - Disc and seat-rings hard-faced for longer service life.
- Welded seat ring - Eliminates leakage path between seat ring and body, does not loosen up due to temperature fluctuations or vibration.
- Swing-type disc.
- Disc: Internally-hinged - No opening on the body, higher integrity.
- Valves available in intermediate pressure classes (#3100, 3500 & 4100) to meet specific customer requirements.
Kirloskar Valve : Check Valves Dealers / Distributors
- BS 1868/ BS 6364
- 2" to 36"
- ASME class 150 to 2500
Salient Features:
- Fully hard-faced trim - Disc and seat-rings hard-faced for longer service life.
- Body and bonnet - Cast with uniform sections, precision machined.
- Body: Permits full swing of disc on downstream side - Lower flow resistance and disc erosion.
- Disc: Internally-hinged - No opening on the body, higher integrity.
- Disc secured to hinge using lock nut and pin.
- Disc free to rotate to avoid localized wear.

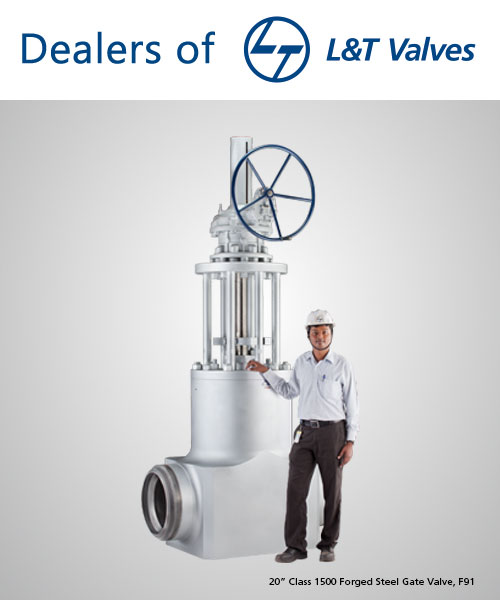

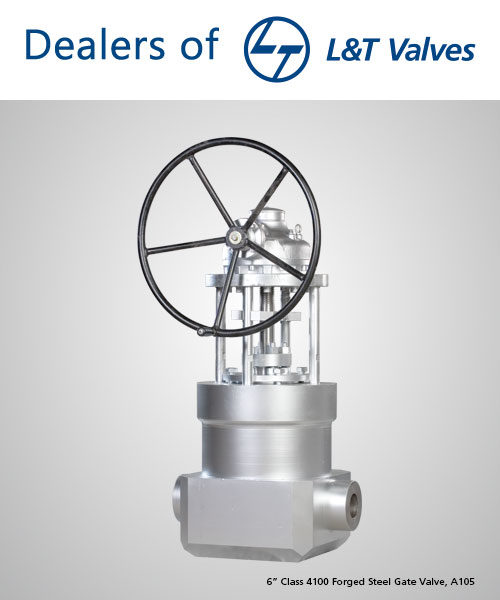

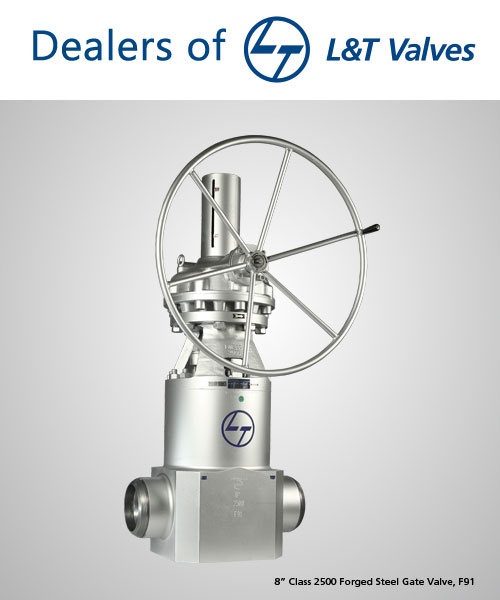

Kirloskar Valve : Forged Steel Valves Dealers / Distributors
Kirloskar Valve manufactures a variety of Gate, Globe & Check Valves in forged construction to suit a spectrum of applications.
Valves for Power
These valves are manufactured by Kirloskar and its wholly-owned subsidiary, Kirloskar BrotheLimited which focuses on the requirements of the power sector. The facility is the only Indian valve plant authorised to offer valves with ASME ‘N’ and ‘NPT’ stamps.Kirloskar forged steel valves conform to ASME B16.34 and the range comprises Pressure-seal Gate, Globe & Check Valves in ASME classes up to 4500.
Small-bore Forged Steel Valves Dealers / Distributors
- These valves are available in ½” to 2” in straight pattern and Y-pattern.
- The straight pattern Gate, Globe & Check Valves are available in ASME classes up to 800 and the Y-pattern range in classes 1500 and 2500.

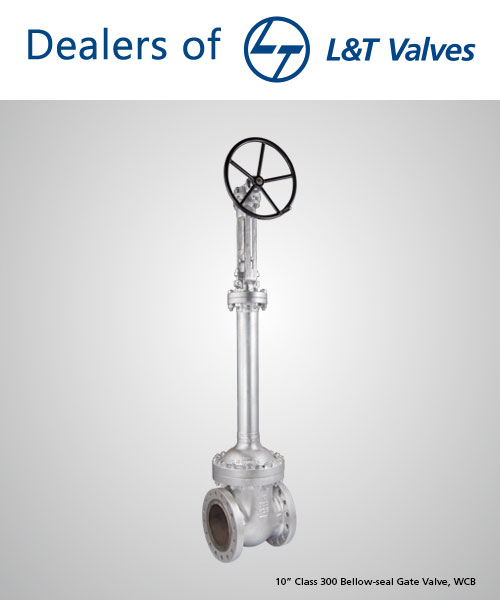

- Bellow-sealed and Cryogenic gate and globe valves are also offered.

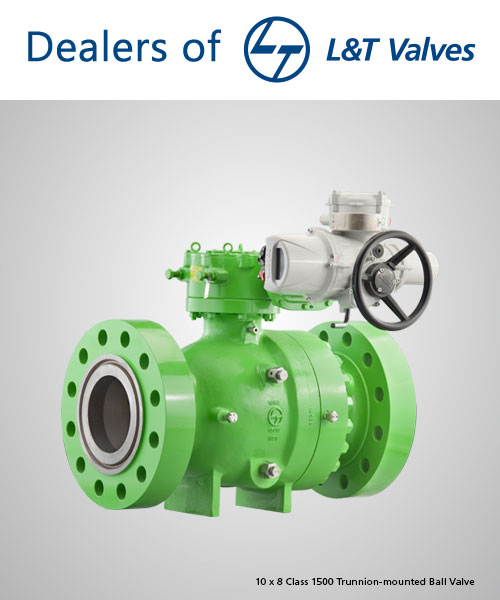

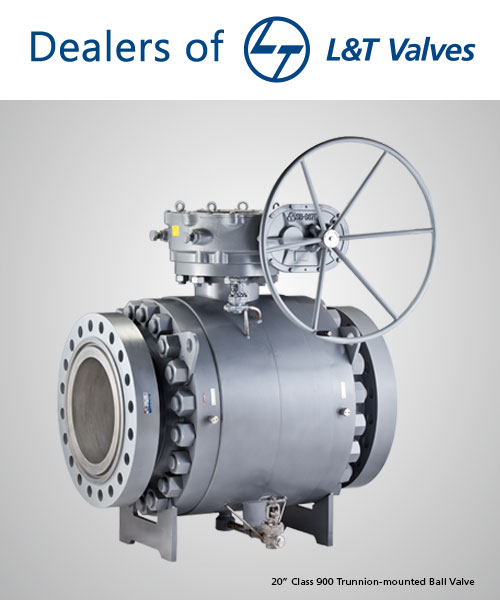

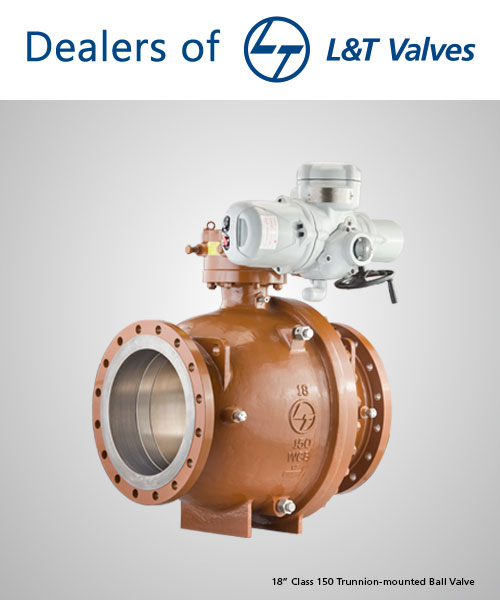

Pipeline Ball Valves Dealers / Distributors
Kirloskar Valve manufactures a wide variety of soft-seated Pipeline Ball Valves.The trunnion-mounted, double block-and-bleed valves conform to API 6D standard.
The valves are available in ASME classes from 150 to 2500, in 2-piece and 3-piece designs, in both in bolted and welded constructions.The valves are available in sizes up to 56 inches in a variety of materials.The valves are approved by the global majors in oil & gas and have earned a reputation for reliable performance in critical services.
Salient Features:
- Internal Trunnion Arrangement
- Double Block and Bleed
- Automatic Cavity Relief Mechanism
- Fire-safe
- Blowout-proof stem
- Stem sealing arrangement
- Vent and Drain Range

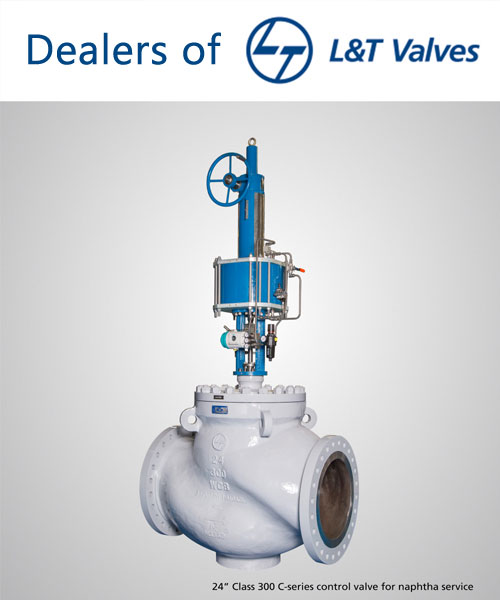

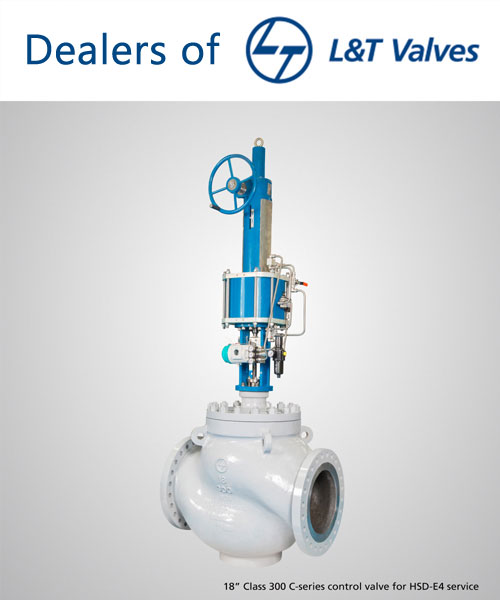

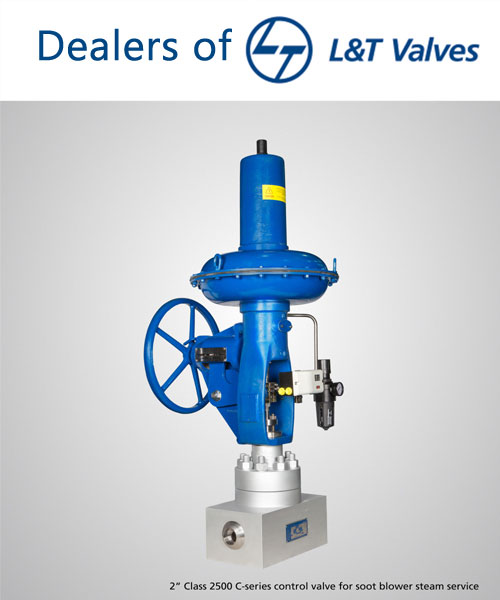

Kirloskar Valve : Globe Control Valves Dealers / Distributors
Kirloskar Valve manufactures a wide range of Globe Control Valves for the power and hydrocarbon industries. The valves are designed using state-of-the-art 3D design, simulation and analysis software. Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) are used to fine-tune product performance. Rigorous prototype tests - both in-house and at advanced flow-control research establishments - ensure that the customised solutions meet customer expectations.
Products:
- Valves for Standard Service (Top-guided, T-series)
- Valves for Severe Service (Cage-guided, C-series)
- Valves for Special Applications
Range:
- ASME classes from 150 to 4500
- Sizes up to 24” (600 mm)
Body Configurations:
- Straight pattern
- Angle Valves
Compliance Standards:
- Pressure Temperature Rating - ASME B16.34
- Leakage Class - ANSI/ FCI 70-2
- Hydrodynamic Noise - IEC 60534-8-4
- Aerodynamic Noise - IEC 60534-8-3
Kirloskar Globe Control Valves are offered in a variety of trim, actuation and materials to meet customer requirements.
Seat & Trim Options:
- Seat Type - Quick Change (Default)
- Optional Seat Type - Welded Seat and Threaded Seat
- Plug Options - Balanced and Unbalanced
- Leakage Class - Up to Class VI
- Trim Types - Contoured, V-Port, Cage and Multi-Cage
- Trim Characteristics - Linear, Equal Percentage and Quick Opening
Actuator Options:
- Pneumatic – Spring & Diaphragm
- Pneumatic - Piston
- Electro - Hydraulic
- Electrical
Kirloskar Valve : Butterfly Valves - Integrally-moulded Dealers / Distributors
- PN 10
Aquaseal Integrally-moulded Butterfly Valve is available in various sizes from in PN 10 pressure rating.The valve was developed to provide reliable sealing in water and air lines, and is today the industry benchmark.The most striking feature of Aquaseal Butterfly Valve is its integrally-moulded body liner. Aquaseal’s elastomer body seat is vulcanised insitu onto the body using high temperature and pressure, and this provides longer life and superior performance when compared to valves with loose liners.
Aquaseal requires no maintenance, and is truly a fit-and-forget valve.
Salient Features:
- Longer Life
- Tight Sealing, and Consistent Low Torque
- Assured Shaft Sealing
- Lower Resistance to Flow - Disc design
- Ease of Installation
- One-piece blowout-proof Shaft
- Reliable Drive
