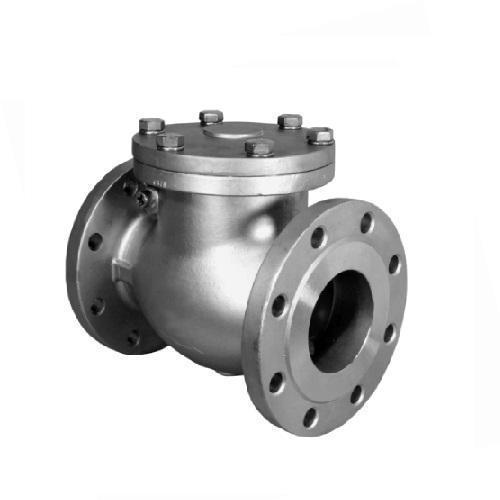

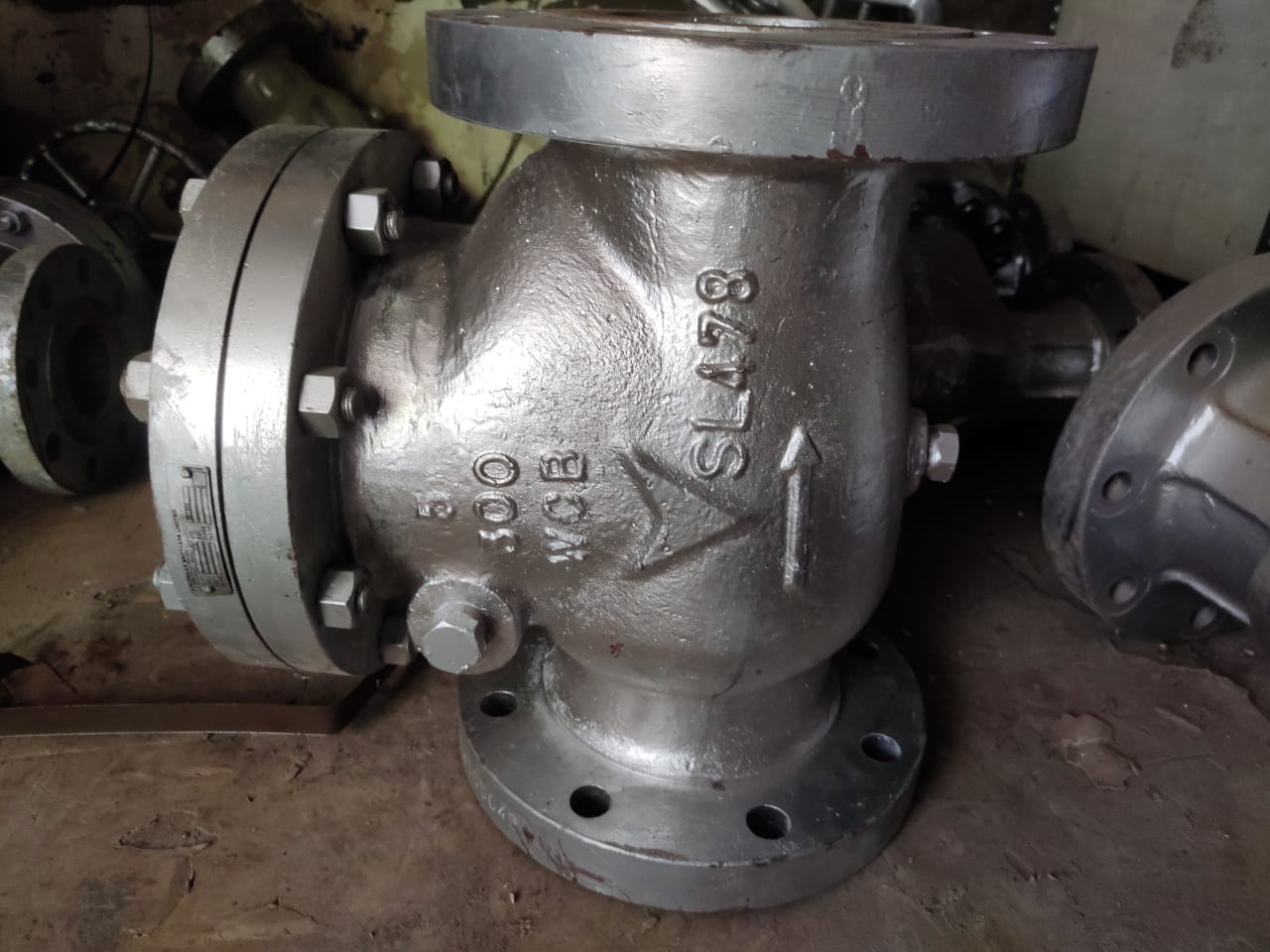

Kirloskar ASA 300# Class CS Reflux Check Valve 300# BS1868 ,RF, WCB BODY ,WCB Disc ,Hing Pin :-SS410 ,Seat :13% Cr.,Disc Ring :13% Cr.
Kirloskar ASA 300# Class CS Reflux Check Valve 300# BS1868 ,RF, WCB BODY ,WCB Disc ,Hing Pin :-SS410 ,Seat :13% Cr.,Disc Ring :13% Cr.
Kirloskar Make CS Swing Check Valve 300# Cat No:CS CHV (BS1868) CL.300# ,BS 1868 ,300# Flanged ANSI RF, WCB BODY ,WCB Disc ,Hing Pin :-SS410 ,Seat :13% Cr.,Disc Ring :13% Cr. - Valvesekart
Kirloskar Make CS Swing Check Valve 300# Cat No:CS CHV (BS1868) CL.300# ,BS 1868 ,300# Flanged ANSI RF, WCB BODY ,WCB Disc ,Hing Pin :-SS410 ,Seat :13% Cr.,Disc Ring :13% Cr. - Valvesekart

Kirloskar ASA 300# Class CS Reflux Check Valve 300# BS1868 ,RF, WCB BODY ,WCB Disc ,Hing Pin :-SS410 ,Seat :13% Cr.,Disc Ring :13% Cr.

Rs. 11,754.00
Rs. 11,754.00
Shipping calculated at checkout.

Technical Data Sheet

DESIGN STD BS1868 MAKE Kirloskar Brothers Ltd
Sub Type  Swing Disc Class 300#
Body  MOC A 216 GR WCB Disc  A 216 GR WCB
Body Seat 13% Cr. Disc Facing 13% Cr.
End Connection  ANSI RF 300# Working Pr. 42 kg/cm2



Download Catalog of Kirloskar CS Check Valve

Visit directly to this product page of Kirloskar website
